Product Details:
|
| Power Source: | Electric | Rated Loading: | 1 Ton |
|---|---|---|---|
| Weight(kg): | 46 | Rated Power: | 2.2KW |
| Maximum Lifting Weight: | 10KN | Power: | 220V/380V 2.2KW |
| Highlight: | gasoline powered winch,cable pulling winches |
||

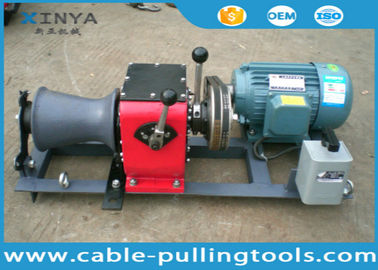

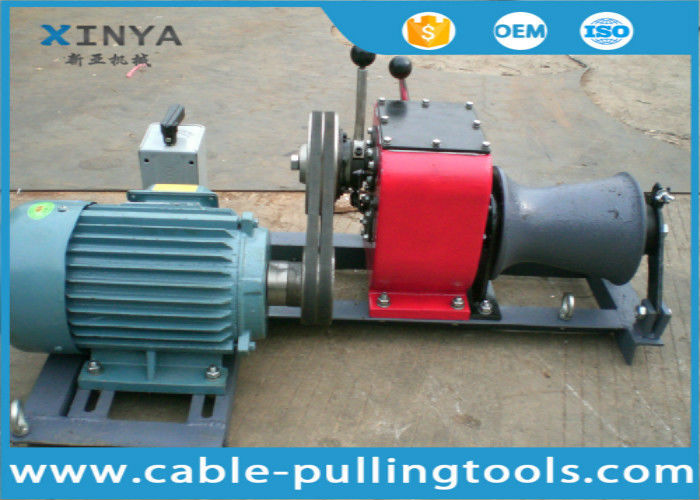

Cable Winch Puller 1 Ton Electric Cable Winch Puller for Tower Erection
Application
1 Ton Small Electric Winch 220v Electric Winch 380v is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even
cylindrical shape and coming with steel rope.
Electric Motor Specification
Rated Power:1.5KW
Rated Current:3.4A
Rated Voltage:380V/220V
Rated Frequency:50Hz
Weight:19KG
Rotate Speed:2840r/min
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Technical Data
| Model NO. | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
| JJM1-D | Electric motor | Slow | 10 | 0.8 | 46 |
| Fast | 15 | 0.6 | |||
| Reverse | 12 | NO Lifting |
Different Types of Winches
|
Model |
Engine |
Gear |
Pulling Speed(m/min) |
Rated Pulling Force(Ton) |
Weight(Kg) |
|
JJQ-1 |
HONDA Petrol engine 4 HP |
(Slow) |
10.0 |
0.8 |
36 |
|
(Fast) |
15.0 |
0.6 |
|||
|
Reverse |
12.0 |
No Lifting! |
|||
|
JJD-1 |
Electric motor 2.2kw |
(Slow) |
10.0 |
0.8 |
46 |
|
(Fast) |
15.0 |
0.6 |
|||
|
Reverse |
12.0 |
No Lifting! |
|||
|
JJQ-3 |
HONDA Petrol engine(6HP)or Homemade Petrol engine |
(Slow) |
5.0 |
3.0 |
82 |
|
(Fast) |
9.0 |
1.8 |
|||
|
Reverse |
4.0 |
No Lifting! |
|||
|
JJC-3 |
Diesel engine(4HP) |
(Slow) |
6.0 |
3.0 |
108 |
|
(Fast) |
11.0 |
1.8 |
|||
|
Reverse |
4.5 |
No Lifting! |
|||
|
JJQ-5 |
YAMAHA Petrol engine (9HP) |
(Slow) |
5.0 |
5.0 |
145 |
|
(Fast) |
9.0 |
2.5 |
|||
|
Reverse |
3.2 |
No Lifting! |
|||
|
JJC-5 |
Diesel engine(6.6HP) |
(Slow) |
5.0 |
5.0 |
180 |
|
(Fast) |
9.0 |
2.5 |
|||
|
Reverse |
3.2 |
No Lifting! |
|||
|
JJQ-8 |
HONDA Petrol engine |
(Slow) |
3.0 |
8.0 |
168 |
|
(Fast) |
5.0 |
3.0 |
|||
|
Reverse |
3.0 |
No Lifting! |
|||
|
JJC-8 |
Diesel engine 10.5HP |
(Slow) |
4.0 |
8.0 |
230 |
|
(Fast) |
7.5 |
3.0 |
|||
|
Reverse |
3.7 |
No Lifting! |
Company Introduction
Established in 1983,registered capital of 5,000,000 RMB,Changshu Xinya Machinery Manufacturing Co.,Ltd.specializes in design,production and sales of electric power construction tools such as 1 ton,2 ton,3 ton,5 ton,8 ton JJM series gasoline engine/diesel engine/electric engine powered winch,tension machine,traction machine;high pressure hydraulic pump;125T&200T hydraulic crimping compressor head;manual pressure pliers;high-strength aluminum alloy wire come along clamp,lifting tackle,wire pulley,cable pulley and so on.We also manufacture various types of large-tonnage forklift mast and a variety of special requirements of non-standard forklift frame.
Our company has passed ISO9001 and BV certificate of company inspection.Based on the principle of seeking for greater perfection,our company constantly improves the quality control system,strengthens the service consciousness of our employees,implements management philosophy of high quality and good service.
