Product Details:
|
| Power Source: | Gasoline | Application: | Cranes |
|---|---|---|---|
| Capacity: | 10KN | Weight(kg): | 36 |
| Dimension(mm): | 770*500*380 | Rated Power: | 4HP |
| High Light: | gasoline powered winch,cable pulling winches |
||

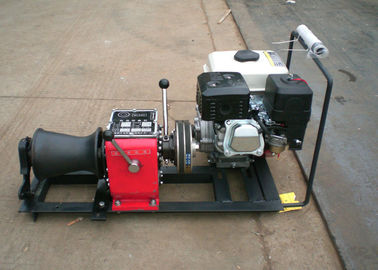

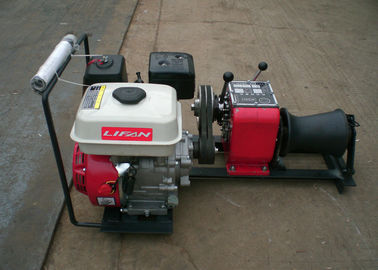

1 Ton Load Capacity Compact Gasoline Engine Cable Winch Puller For Cranes
Application
1 Ton Small Winch,Petrol Engine Powered Winch,Lifting Machine is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Our Values
1, Take First-Class Quality as Target and First-class Service.
2, As Responsibility, To Succeed By Scientific Management.
3, Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data
| Model NO. | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
| JJM1-Q | HONDA Petrol engine 4 HP | Slow | 10.0 | 0.8 | 36 |
| Fast | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting | |||
| Electric motor | Slow | 10.0 | 0.8 | 46 | |
| Fast | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting |
