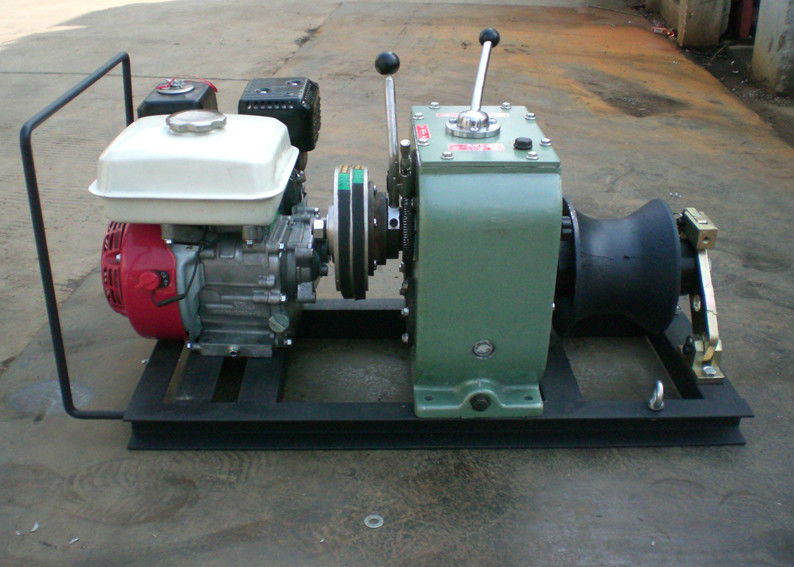

High Efficiency Fast Petrol Cable Winch Puller Engine Powered Capstan 3 Ton

High Efficiency Fast Petrol Cable Winch Puller Engine Powered Capstan 3 Ton
High Efficiency Fast Petrol Cable Winch Puller Engine Powered Capstan 3 Ton High Efficiency Fast Petrol Cable Winch Puller Engine Powered Capstan 3 Ton

Large Image :  High Efficiency Fast Petrol Cable Winch Puller Engine Powered Capstan 3 Ton

Product Details:
Place of Origin: Jiangsu, China
Brand Name: XINYA
Certification: ISO
Model Number: JJM3Q
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: get latest price
Packaging Details: standard export wooden case
Delivery Time: 10 days after payment
Payment Terms: L/C, T/T,
Supply Ability: 500 set/sets per month

High Efficiency Fast Petrol Cable Winch Puller Engine Powered Capstan 3 Ton

Description
Power Source: Petrol Engine Application: Power Construction
Capacity: 30KN Weight(kg): 82
Material: Steel Usage: Pulling/hoisting
High Light:

gasoline powered winch

,

engine powered winch

High Efficiency Fast Petrol Engine Powered Winch Capstan 3 Ton



Brief introduction of engine powered winch

Electric winch is powered by motor. The power is input into the third level enclosed gear reduction box by flexible coupling to lift weight or pull by wire rope and to drive the drum from Low speed shaft end steel key. We use common motor when we need to lift or pull small weight. Conversely, lifting motor is adapted. The common motor can start directly. But the lifting motor starts slowly and stably by cam switch and resistanceadjusting.The brake system adopts electromagneticbraking or hydraulic braking.



Work principle engine powered winch

The winch transforms electric energy into mechanical energy through the motor1, which is rotor of the motor moves, outputs, and then through the brake 2, and the reducer 3 reduces speed to rotate the reel 4. The reel winds the wire rope and passes through pulley block to make the hook lift the load Q, and transforms mechanical energy into mechanical work finishing transportation, load and unload of heavy weights.



Features of engine powered winch

1. High versatility

2. Compactstructure

3. Smallvolume, lightweight, convenience in using and transferring

4. Driving stably

5. Very light noise

6. With big drum rope capacity to make you a wide range of choice for the lifting height or pulling length.

7. Adjustable lifting or pulling speed for different usage environment.



Application

3 Ton Honda Winch/Petrol Engine Powered Winch  is used for tower erection,pole setting,stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical  shape and coming with steel rope.



Technical Data

Model Type Engine Power Gear Pulling Speed(m/min) Line Pull(Ton)
JJM3-Q Honda Petrol engine 6HP Slow  4 3
Quick 7 1.8
Reverse 3.5



High Efficiency Fast Petrol Cable Winch Puller Engine Powered Capstan 3 Ton 0
