Product Details:
|
| Power Source: | Diesel Engine | Application: | Cranes,Power Construction |
|---|---|---|---|
| Capacity: | 50KN | Rated Loading Capacity: | 5 Ton |
| Maximum Pulling Speed(m/min): | 9 | Selling Point: | Double Drum Winch |
| High Light: | gasoline powered winch,engine powered winch |
||

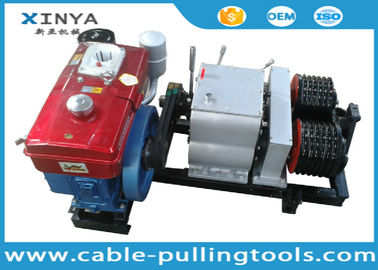

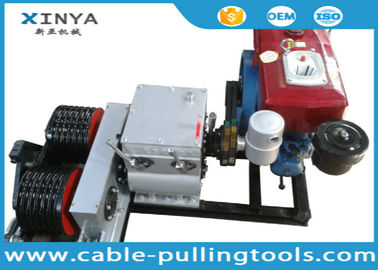

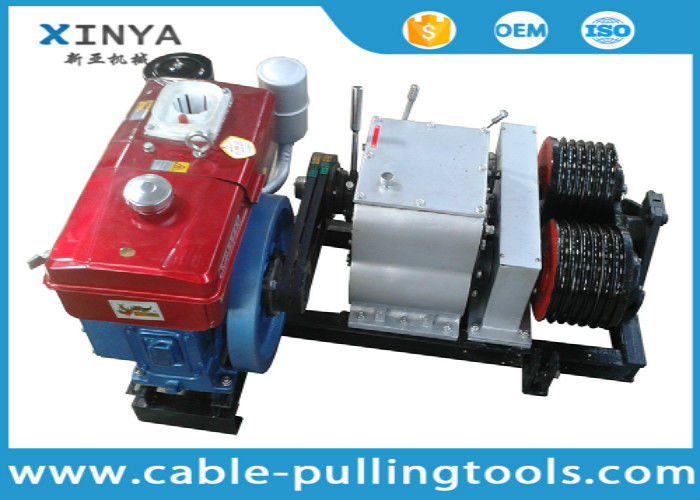

Double Drum Hoist Winch 5 Ton with Diesel Engine for tower erection
Application
Used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even
cylindrical shape and coming with steel rope.
Advantage and feature
1. Light aluminum shell ;
2. Electromagnetic brake ;
3. Electromagnetic contactor ;
5. Hot forging with perfect strength chain;
6. Hook is constructed of anti-pull and heat-treated steel and heat-treated steel .
Technical Data
| Model | JJM-5SQ/JJM-5SC | |||||
| Engine | HODNA GX390/186F Diesel Engine | |||||
| Power | 13HP,3600rpm/6.3KW,3600rpm | |||||
| Suitable Wire Rope(mm) | 15 | |||||
| Bottom diameter of Groove(mm) | 240 | |||||
| No. Of Groove | 6 | |||||
| Gear | Forward | Reverse | ||||
| Slow I | Slow II | Fast I | Fast II | Slow | Fast | |
| Pull Force(KN) | 50 | 30 | 13 | 10 | No lifting | No lifting |
| Speed(m/min) | 6 | 10 | 23 | 30 | 5 | 17 |
| Weight(KG) | 280/300 | |||||
| Dimension(mm) | 1330×800×600 | |||||
