Product Details:
|
Power Source: | Petrol Engine | Application: | Power Construction |
---|---|---|---|
Capacity: | 50KN | Weight(kg): | 137 |
Material: | Steel | MOQ: | 2sets |
Usage: | Pulling/hoisting | ||
Highlight: | engine powered winch,cable pulling winches |

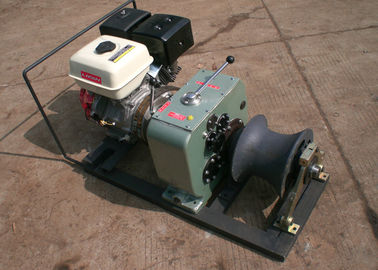

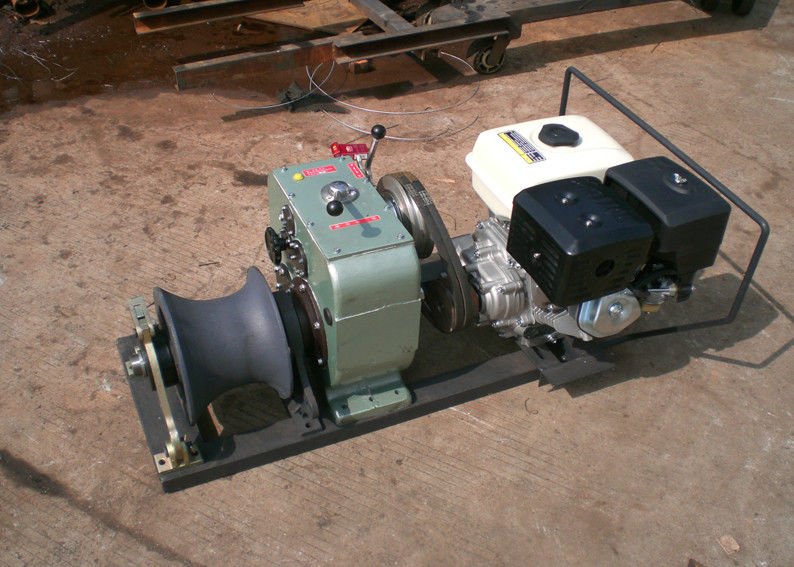

5 Tons Petrol Engine Powered Winch / gasoline engine powered winch
Application
Gasoline engine powered winch referred to as gasoline winch, mainly used for erecting air high-voltage transmission lines and the laying of underground cables, gasoline engine powered winch automatic clamp brake and clutch transmission chain brake two kind of braking device, in the opposite direction are positive, the braking action.
Gasoline Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Features
1)Speedy and Efficient
2)Safe and Reliable
3)Compact structure
4)Widely used
5)Light weight
Quality Control
We have the complete production equipments and professional production team to manage the whole process from producing to packing and shipping.All of the products will be 100% tested before the delivery to ensure the quality of our products.
Our Slogan
Strives for the survival by the quality, development by innovation.
Strict process control, to ensure customer satisfaction.
Safety first, precaution crucial; Energy conservation and emissions reduction, care for the environment.
Law-abiding, civilization construction; Full participation, continuous development.
Company Introduction
Established in 1983,registered capital of 5,000,000 RMB,Changshu Xinya Machinery Manufacturing Co.,Ltd.specializes in design,production and sales of electric power construction tools such as 1 ton,2 ton,3 ton,5 ton,8 ton JJM series gasoline engine/diesel engine/electric engine powered winch,tension machine,traction machine;high pressure hydraulic pump;125T&200T hydraulic crimping compressor head;manual pressure pliers;high-strength aluminum alloy wire come along clamp,lifting tackle,wire pulley,cable pulley and so on.We also manufacture various types of large-tonnage forklift mast and a variety of special requirements of non-standard forklift frame.
Our company has passed ISO9001 and BV certificate of company inspection.Based on the principle of seeking for greater perfection,our company constantly improves the quality control system,strengthens the service consciousness of our employees,implements management philosophy of high quality and good service.
Technical Data
Model Number | Gear | Pulling Force(KN) | Pulling Speed(m/min) | Power | Weight(KG) |
JJM-5BQ | Slow | 50 | 5 | 9HP | 137 |
Quick | 30 | 11 | |||
Reverse | No Lifting | 3.2 |
