5 Ton Gasoline Engine Cable Winch Puller for Power Construction

5 Ton Gasoline Engine Cable Winch Puller for Power Construction
5 Ton Gasoline Engine Cable Winch Puller for Power Construction 5 Ton Gasoline Engine Cable Winch Puller for Power Construction

Large Image :  5 Ton Gasoline Engine Cable Winch Puller for Power Construction

Product Details:
Place of Origin: Jiangsu, China
Brand Name: XINYA
Certification: ISO
Model Number: JJM-5BQ
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: get latest price
Packaging Details: standard export wooden case
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T,
Supply Ability: 500 set/sets per month

5 Ton Gasoline Engine Cable Winch Puller for Power Construction

Description
Power Source: Petrol Engine Application: Power Construction
Capacity: 50KN Weight(kg): 130
Selling Point: Fast Speed Winch Type: Yamaha Engine Winch
High Light:

engine powered winch

,

cable pulling winches

5 Ton Gasoline Engine Cable Winch Puller for Power Construction





Brief introduction of engine powered winch

Electric winch is powered by motor. The power is input into the third level enclosed gear reduction box by flexible coupling to lift weight or pull by wire rope and to drive the drum from Low speed shaft end steel key. We use common motor when we need to lift or pull small weight. Conversely, lifting motor is adapted. The common motor can start directly. But the lifting motor starts slowly and stably by cam switch and resistanceadjusting.The brake system adopts electromagneticbraking or hydraulic braking.



Work principle engine powered winch

The winch transforms electric energy into mechanical energy through the motor1, which is rotor of the motor moves, outputs, and then through the brake 2, and the reducer 3 reduces speed to rotate the reel 4. The reel winds the wire rope and passes through pulley block to make the hook lift the load Q, and transforms mechanical energy into mechanical work finishing transportation, load and unload of heavy weights.



Application

It is used for tower erection,pole setting,stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical  shape and coming with steel rope.



Technical Data

Model Type Gear Pulling Force(KN) Pulling Speed(m/min) Power Dimension(mm) Weight(kg)
JJM-5BQ Gasoline Engine Fast 9 24 9HP 1100*498*600 130
Mid 15 14
Mid 30 9
Slow 50 5

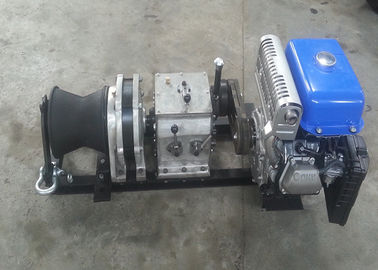

5 Ton Gasoline Engine Cable Winch Puller for Power Construction 0



Application

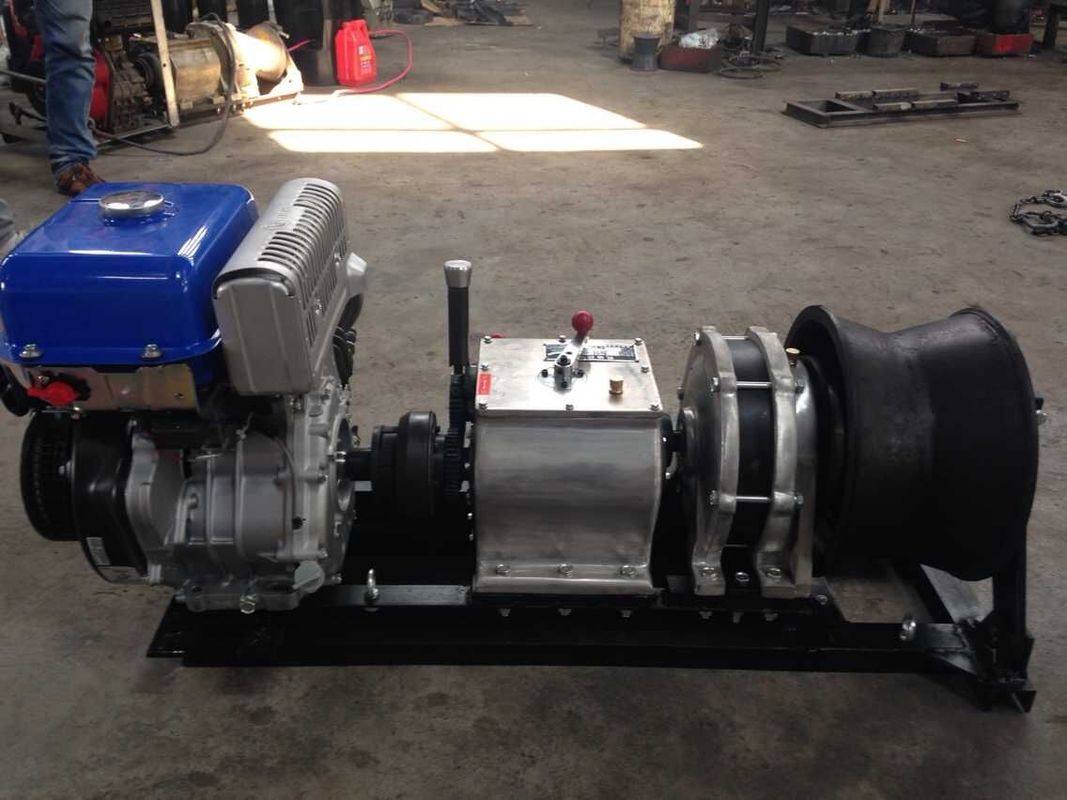

5 Ton Gasoline Engine Cable Winch Puller for Power Construction 1
