Product Details:
|
| Power Source: | Gasoline Engine | Capacity: | 50KN |
|---|---|---|---|
| Application: | Cable Pulling | Weight(kg): | 200 |
| Selling Point: | Fast Speed | Warranty: | 1 Year |
| High Light: | engine powered winch,cable pulling winches |
||

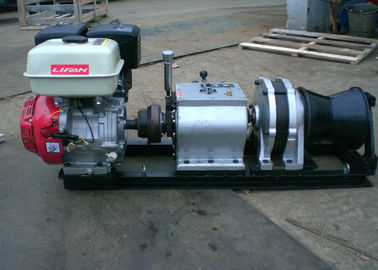

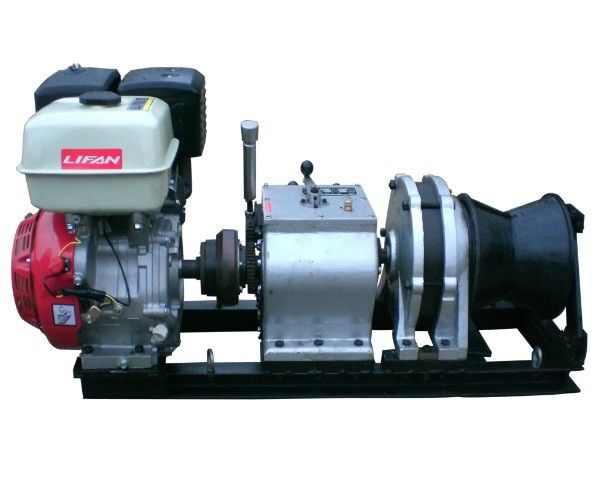

5 Ton Fast Line Speed Gasoline Engine Winch for Power Construction
Application
Gasoline engine powered winch referred to as gasoline winch, mainly used for erecting air high-voltage transmission lines and the laying of underground cables, gasoline engine powered winch automatic clamp brake and clutch transmission chain brake two kind of braking device, in the opposite direction are positive, the braking action.
Gasoline Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Features
1) Speedy and Efficient
2) Safe and Reliable
3) Compact structure
4) Widely used
5) Light weight
Technical Data
| Model | Specification | Gear | Line Pull | Pulling Speed | |
| KN | m/min | ||||
| JJM-5B(Q) | Overall Size:1200*600*750mm | Forward | I | 50 | 5 |
| II | 30 | 9 | |||
| Weight:180kg | III | 15 | 14 | ||
| IV | 9 | 24 | |||
| Transmission:Shaft Driven | Reverse | I | - | 5 | |
| II | - | 9 | |||
| Engine:HONDA GX360 13HP | III | - | 14 | ||
| IV | - | 24 | |||
Company Information
Founded in 1983, CHANGSHU city power machinery factory.
Since 1983 to 2008,XINYA is focusing on hoisting machinery,mining machinery and forklift parts.
From 2008,XINYA enlarge the manufacturing ability,focusing on cable pulling tools.
In 2013 the company passed ISO9001 certification, and obtain the AAA certificate.
In 2015 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
To now,XINYA has already sell cabe pulling tools to Pakistan, India, Mexico, Turkey, Peru,Brazil, Vietnam,Thailand,Saudi Arabia,Malaysia,Kenya and etc.
We have cooperated with ESCOM MALAWI,ZESCO,Transelectria,Kenya Burhani,Barons & Fujikura, and so on.
If you are interested in our products or have any question, please do not hesitate to contact us. We promise any inquiry from you will receive our most careful and immediate attention.
Our value is Brave challenger, never give up
Our spirit is Make it perfectly
Our goal is International, Technological, Professional
