Product Details:
|
| Power Source: | Diesel Engine | Application: | Power Construction, Power Construction |
|---|---|---|---|
| Capacity: | 3T | Rated Loading: | 3 Ton |
| Material: | Steel | MOQ: | 2sets |
| Weight(kg): | 100 | Dimension(mm): | 840*600*500 |
| Rated Power: | 4HP | Name: | 3T Diesel Cable Pulling Winch For Stringing Wire Rope |
| High Light: | cable pulling winches,engine powered winch,3T Diesel Cable Winch Puller |
||

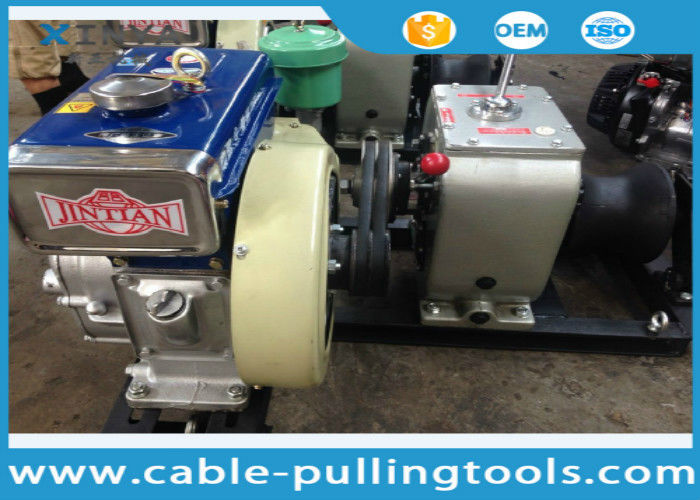

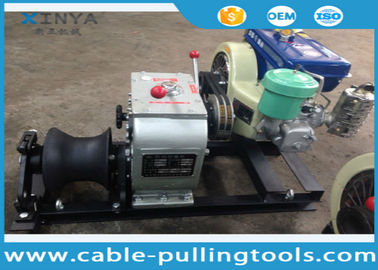

3T Diesel Cable Winch Puller for Stringing Wire Rope During Tower Erection
Application
3T Diesel Cable Pulling Winch for Stringing Wire Rope During Tower Erection is used for tower erection, stringing in electric power line construction.
They can complete the tasks of heavy lifting and dragging such as erecting the wire. Testified by the
experiments and practical uses, they have reasonable structure, small volume, light weight, strong power,
nimble operation and convient transporting. Based on so many advantages, this two models of Powered
winch are popular with the electric workers.
Brief introduction of engine powered winch
Electric winch is powered by motor. The power is input into the third level enclosed gear reduction box by flexible coupling to lift weight or pull by wire rope and to drive the drum from Low speed shaft end steel key. We use common motor when we need to lift or pull small weight. Conversely, lifting motor is adapted. The common motor can start directly. But the lifting motor starts slowly and stably by cam switch and resistanceadjusting.The brake system adopts electromagneticbraking or hydraulic braking.
Technical Data
| Model Type | Engine Power | Gear | Pulling Speed(m/min) | Line Pull(Ton) |
| JJM3-B | Diesel Engine | Slow | 5 | 3 |
| Quick | 12 | 1.8 | ||
| Reverse | 4.5 |
