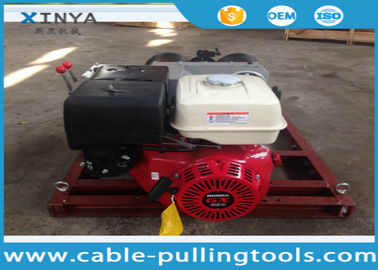

5T Cable Drum Gasoline Engine Powered Winch For Pulling / Lifting During Tower Erection

5T Cable Drum Gasoline Engine Powered Winch For Pulling / Lifting During Tower Erection
5T Cable Drum Gasoline Engine Powered Winch For Pulling / Lifting During Tower Erection 5T Cable Drum Gasoline Engine Powered Winch For Pulling / Lifting During Tower Erection

Large Image :  5T Cable Drum Gasoline Engine Powered Winch For Pulling / Lifting During Tower Erection

Product Details:
Place of Origin: Jiangsu, China
Brand Name: XINYA
Certification: BV, ISO
Model Number: JJM-5SQ
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: US $2,200 - 3,200 / Set
Packaging Details: standard export wooden case
Delivery Time: 10 days after payment
Payment Terms: L/C, T/T,
Supply Ability: 200 Set/Sets per Month

5T Cable Drum Gasoline Engine Powered Winch For Pulling / Lifting During Tower Erection

Description
Power Source: Honda Gasoline Engine GX390 13HP Sling Type: Wire Rope
Maximum Lifting Weight: 50kn Maximum Lifting Height: 10m
Lift Speed: 26m/min Weight(kg): 200
Dimension(mm): 1000*670*600 Product Name: 5T Cable Drum Gasoline Winch For Pulling,Lifting During Tower Erection
High Light:

cable pulling winches

,

engine powered winch

,

5T gas engine winch

5T Cable Drum Gasoline Winch For Pulling,Lifting During Tower Erection



Application

It is used for tower erection,pole setting,stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan

into straight even cylindrical shape and coming with steel rope.



Technical Data

Model Type Overall Size(mm) Weight(kg) Power Gear Pulling Force(KN) Pulling Speed(m/min)
JJM-5SQ 1330*800*600 290 GX390,13HP Gasoline Engine Slow I 50 6
SLOW II 30 10
Quick I 13 23
Quick II 10 30
Reverse/slow No Lifting 5
Reverse/quick No Lifting 17



5T Cable Drum Gasoline Engine Powered Winch For Pulling / Lifting During Tower Erection 0

5T Cable Drum Gasoline Engine Powered Winch For Pulling / Lifting During Tower Erection 1
